Home » Resources » Trulux LED Tape Light Layout Examples
Resources

Trulux LED Tape Light Layout Examples

The Trulux LED tape light system from American Lighting is a revolutionary top-to-bottom architectural LED accent lighting solution. With a variety of color options and application targets, it can fit nearly any project. But with all the different options available, making sure you get all the correct components necessary for your project can be a bit overwhelming.

Let's take a look at some of the major different lighting setups and which products should go with each setup. Use the numbered diagrams to reference the different components of a Trulux LED Tape Light system:

  1. The Controller: Performs dimming and/or color control operations.
  2. The Driver: Provides power to the tape light. Driver wattage should be sized according to length of attached run(s).
  3. The Receiver: Receives the wireless signal from the controller.
  4. The Tape Light: White, adjustable color temperature white, or color-changing light source.


Note: This article does not address DMX layouts, which can be more complicated. Please contact us for assistance with a DMX lighting system.



Looking for a simpler installation for a smaller project? Try the convenient all-in-one Trulux Kits!

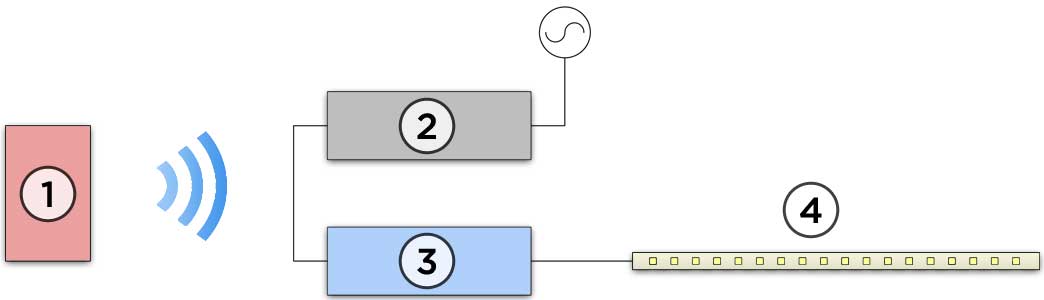

Single Color White with Trulux Controller



The Trulux single color white LED tape light is controlled wirelessly using a Trulux dimmer. Dimmer must be located within 65 feet of receiver. Some dimmers may require their own input power for operation - refer to product pages and/or manufacturer cut sheets.

1. Controller 2. Driver 3. Receiver 4. Tape Light
RF Dial Wall Dimmer - Single Zone
RF Touch Wall Dimmer - Multi Zone
DR 30w Driver
DR 60w Driver
DR 100w Driver
DR 150w Driver
Trulux RF Receiver Standard Grade IP54 Tape Light - 16.4ft
Standard Grade IP54 Tape Light - 32.8ft
Standard Grade IP65 Tape Light - 16.4ft
High Output IP54 Tape Light - 16.4ft
High Output IP68 Tape Light - 16.4ft
Spec Grade IP54 Tape Light - 13.1ft
Spec Grade IP65 Tape Light - 13.1ft

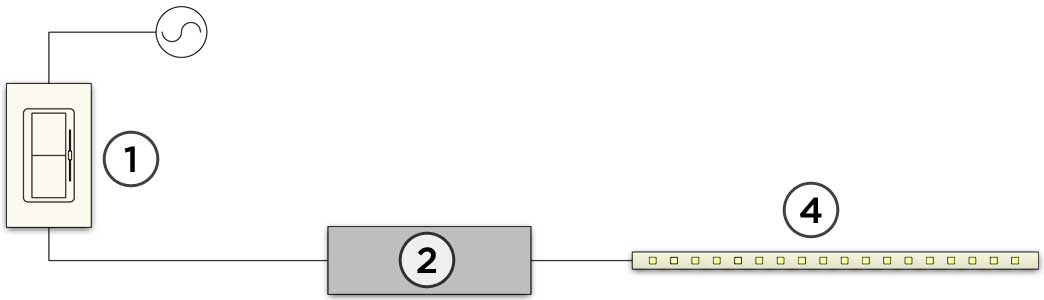

Single Color White with 3rd-Party Dimmer



The Trulux single color white light strip is dimmed using a third-party wired dimmer (such as a Lutron wall dimmer). Refer to cut sheets/instructions for dimmer compatibility.

1. Controller 2. Driver 3. Receiver 4. Tape Light
Most LED/ELV dimmers
(Such as the Lutron Diva DVCL-153P)
ELV 30w Driver
ELV 45w Driver
ELV 60w Driver
ELV 80w Driver
Not used Standard Grade IP54 Tape Light - 16.4ft
Standard Grade IP54 Tape Light - 32.8ft
Standard Grade IP65 Tape Light - 16.4ft
High Output IP54 Tape Light - 16.4ft
High Output IP68 Tape Light - 16.4ft
Spec Grade IP54 Tape Light - 13.1ft
Spec Grade IP65 Tape Light - 13.1ft


Tunable White with Trulux Controller



The Trulux tunable white tape light is controlled wirelessly using a Trulux controller. Controller must be located within 65 feet of receiver. Some controllers may require their own input power for operation - refer to product pages and/or manufacturer cut sheets.

1. Controller 2. Driver 3. Receiver 4. Tape Light
RF Dial Wall Controller - Single Zone
RF Dial Table Top Controller - Single Zone
RF Remote Control - Multi Zone
DR 30w Driver
DR 60w Driver
DR 100w Driver
DR 150w Driver
Trulux RF Receiver Tunable White High Output IP54 Tape Light - 16.4ft
Tunable White High Output IP65 Tape Light - 16.4ft


RGB or RGBW Color-Changing with Trulux Controller



The Trulux color changing RGB and RGBW tape lights are controlled wirelessly using a Trulux controller. Controller must be located within 65 feet of receiver. Some controllers may require their own input power for operation - refer to product pages and/or manufacturer cut sheets.

1. Controller 2. Driver 3. Receiver 4. Tape Light
RF Touch Wall Controller - Multi Zone
RF Rechargeable Remote Control - Multi Zone
RF Remote Control - Multi Zone
DR 30w Driver
DR 60w Driver
DR 100w Driver
DR 150w Driver
Trulux RF Receiver RGB High Output IP54 Tape Light - 16.4ft
RGB High Output IP68 Tape Light - 16.4ft
RGBW High Output IP54 Tape Light - 16.4ft
RGBW High Output IP65 Tape Light - 16.4ft

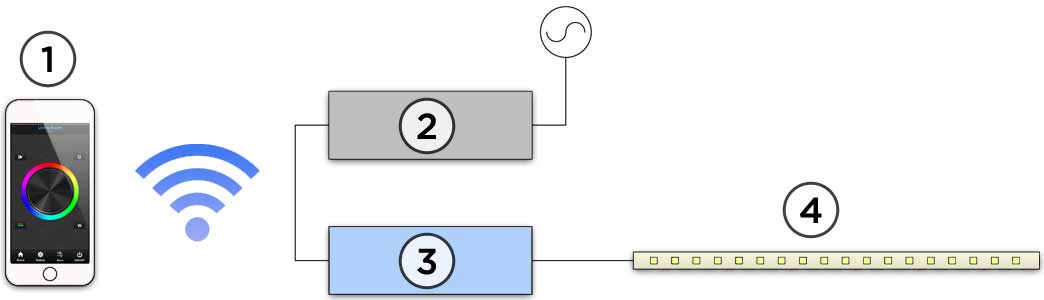

Using Trulux Mobile App (Single Zone)



The Trulux tape light is controlled via an app on your Apple or Android mobile device (smartphone or tablet), which communicates over WiFi to the receiver. The special WiFi Receiver will create its own WiFi network that you connect to in order to control the lights. The Trulux app is a free download from the App Store and Google Play.

1. Controller 2. Driver 3. Receiver 4. Tape Light
Trulux app DR 30w Driver
DR 60w Driver
DR 100w Driver
DR 150w Driver
Trulux RF/WiFi Receiver Any Trulux tape light
Single color white
Tunable white
RGB/RGBW

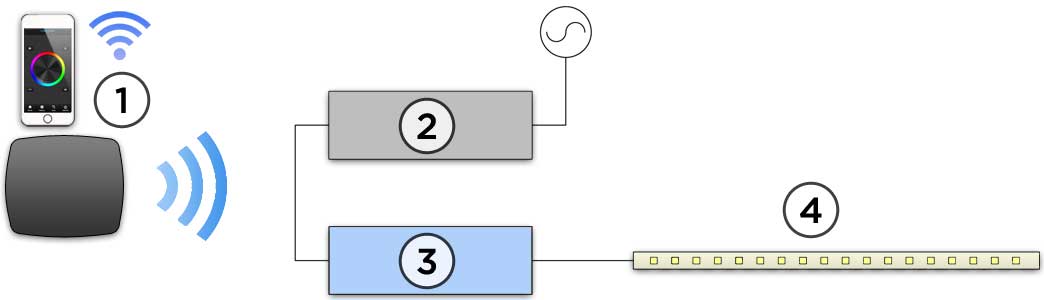

Using Trulux Mobile App (Multi Zone)



The Trulux tape light is controlled via an app on your Apple or Android mobile device (smartphone or tablet), which communicates over WiFi to the Trulux Hub. The hub then translates the signal into an RF signal, communicating to the corresponding RF receiver. Hub must be located within 65 feet of receivers. The Trulux app is a free download from the App Store and Google Play.

1. Controller 2. Driver 3. Receiver 4. Tape Light
Trulux app
Trulux WiFi Hub
DR 30w Driver
DR 60w Driver
DR 100w Driver
DR 150w Driver
Trulux RF Receiver Any Trulux tape light
Single color white
Tunable white
RGB/RGBW
