BUG Rating System & Nighttime LED Lighting



Quality lighting becomes even more important when you’re outdoors. When the sun goes down, it is the only thing separating you from total darkness. But that lighting needs to be usable, as excessive amounts of stray light will send illumination every place except where you need it. Using the BUG exterior system can help you choose the best exterior lighting for street lights, area lights, walkway lights, wall packs, and other systems while reducing wasted light and light pollution.

What is a BUG Rating?

The BUG lighting classification system is a useful measurement of nighttime luminaire performance. The system was developed by the Illuminating Engineering Society (IES) and the International Dark Sky Association as a way of evaluating any outdoor light fixture. It was first added to the Luminaire Classification System (LCS) in 2009, replacing the previous system that was mainly geared toward street lights.

In the case of these ratings, the word “BUG” is an acronym for Backlight, Uplight and Glare. All three are forms of stray light that can be emitted from a fixture. Although each does have positive uses in certain applications, they are generally considered “bad” light, as they often are not light you can practically use. But each is noticeably worse for some tasks than others, and the BUG rating helps to quantify this.

LED Fixture Backlight (B)

Backlight, also known as light trespass, refers to the light emitting from behind a fixture. This light usually protrudes outwards or towards the ground, illuminating an area that is not intended to be illuminated. Backlight is great when you’re talking about improving the visibility of wristwatches or viewing your smartphone. But when you can’t sleep at night because of the light shining out from behind a streetlight into your room, you might think twice about enjoying backlight. In order to get more light to head towards the front, manufacturers can use optics, reflectors, or glare shields to redirect it.

Luminaire Uplight (U)

Uplight is the light that shines upwards from a fixture towards the sky — hence the alternate term “skyglow”. This stray light is responsible for the light pollution often seen in large cities. In exterior lighting, any uplight is wasted light, as it is not going towards where people are. It will also block out the view of the stars and moon. Skyglow can be cut down by fully shielding your fixture and by making sure it’s pointed towards the ground. This will also reduce energy use and cost. The IDA is particularly concerned with limiting uplight so more people can enjoy the stars at night.

Nighttime Glare (G)

Glare, or forward light, is sometimes called “offensive light” because that’s exactly what it does for most people. This light, which can be reflected or directed, makes it very difficult for people to see — especially when it shines directly into their eyes. It is especially dangerous when operating a motor vehicle at night. Glare can be reduced by using lights that aren’t as bright or by selecting a light with a distribution pattern that’s appropriate for your intended use.

How to Calculate a BUG Rating

The BUG system might seem complicated at first, but it actually has an intuitive setup. Every zone of stray light is divided into subzones as follows:

Backlight Subzones

  • BVH: Backlight Very High (80-90 degrees)
  • BH: Backlight High (60-80 degrees)
  • BM: Backlight Mid (30-60 degrees)
  • BL: Backlight Low (0-30 degrees)


Uplight Subzones

  • UH: Uplight High (100-180 degrees)
  • UL: Uplight Low (90-100 degrees)


Glare Subzones

  • FVH: Forward light Very High (80-90 degrees)
  • FH: Forward light High (60-80 degrees)
  • FM: Forward light Mid (30-60 degrees)
  • FL: Forward light Low (0-30 degrees)

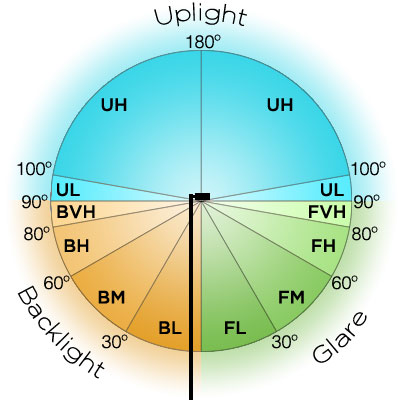

BUG rating system for outdoor LED lighting fixtures.

The subzones are individually rated on a scale from 0 to 5, going from lowest to highest luminous flex. The highest rating of a subzone is considered the overall rating for that zone, and these readings are compiled into the BUG lighting classification: for example, B3 U1 G0. The tables below, which are based on the standards established by the IES, show the thresholds for each subzone.

Table 1: Backlight Ratings (in lumens)

B0
B1
B2
B3
B4
B5
Backlight BH 110 500 1,000 2,500 5,000 >5,000
BM 220 1,000 2,500 5,000 8,500 >8,500
BL 110 500 1,000 2,500 5,000 >5,000


Table 2: Uplight Ratings (in lumens)

U0
U1
U2
U3
U4
U5
Uplight UH 0 10 50 500 1,000 >1,000
UL 0 10 50 500 1,000 >1,000


Table 3: Glare Ratings for Asymmetrical Fixtures (in lumens)
(Type I, Type II, Type III, Type IV)

G0
G1
G2
G3
G4
G5
Glare FVH 10 100 225 500 750 >750
BVH 10 100 225 500 750 >750
FH 660 1,800 5,000 7,500 12,000 >12,000
BH 110 500 1,000 2,500 5,000 >5,000


Table 4: Glare Ratings for Quadrilateral Symmetrical Fixtures (in lumens)
(Type V, Type V Square)

G0
G1
G2
G3
G4
G5
Glare FVH 10 100 225 500 750 >750
BVH 10 100 225 500 750 >750
FH 660 1,800 5,000 7,500 12,000 >12,000
BH 660 1,800 5,000 7,500 12,000 >12,000


BUG Rating Example

Let’s assume we have an 80 watt LED outdoor area light, equivalent to a traditional 250W metal halide fixture, with a Type IV forward throw distribution. Based on photometric tests, the luminaire has the following zonal lumen distribution:

Backlight Lumens
BL 985
BM 930
BH 136
BVH 16
Uplight
UL 0
UH 0
Glare/Forward Light
FL 1618
FM 6093
FH 3748
FVH 27


Calculate Backlight

Find the lowest B rating where the lumens for the secondary solid angles do not exceed the threshold lumens from Table 1. The subzone that has the highest rating determines the overall rating. In this case, the backlight rating would be B2 based on the BL lumen limit.

Calculate Uplight

Find the lowest U rating where the lumens for the secondary solid angles do not exceed the threshold lumens from Table 2. The subzone that has the highest rating determines the overall rating. In this case, the uplight rating would be U0 based on the UH and UL lumen limits.

Calculate Glare

Find the lowest G rating where the lumens for the secondary solid angles do not exceed the threshold lumens from Table 3 or 4, depending on the light distribution of the fixture. In this case, the fixture has an asymmetrical distribution pattern of Type IV, so we’ll use Table 3. The subzone that has the highest rating determines the overall rating. In this case, the glare rating would be G2 based on the FH lumen limit.

Therefore the combined BUG rating for this fixture would be: B2 U0 G2

The Future of BUG

BUG is a relatively new light rating, and as such, it is not currently required for manufacturers. However, some have already begun to use the system independently, and it is expected that its use will continue to rise. If you see an LED luminaire with a BUG rating, you will know the manufacturer is making a concerted effort to produce lights that are more effective.
