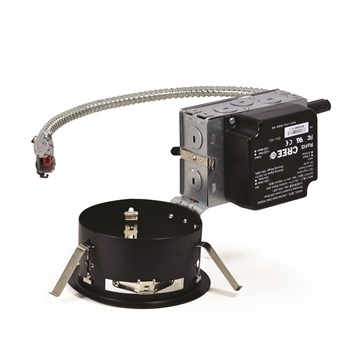

Nora 4" Sapphire LED High Lumen Downlight - Remodel Frame - 2000 Lumens

Item Description


This 4-inch remodel frame is suitable for remodel applications where you already have an existing ceiling in place. High tension steel springs hold the frame in place and a lockable quick connector easily wires to the reflector trim.

Junction box and dimmable driver accept 120V input and allow the accompanying 2000 lumen light engine trim (not included) to be dimmed via 0-10V dimming. Comes standard with an industry-leading 10-year warranty.

Other voltage, dimming, and lumen packages available. Please contact us if you need to adjust the configuration for your project.

TRIM REQUIRED. This frame requires a compatible Nora 4" Sapphire 2000 lumen trim, which must be purchased separately.

This is a special-order product.

Downloads

Related Items

Specifications



Voltage	120V
Trim	Compatible with 4" Nora Sapphire 2000 lumen trim
Mounting	Secures to drywall ceiling or ceiling tile
Aperture	4"
Height	6"
Dimmable	Yes, 0-10V
IC-Rated	No
Air Tight	No
Certifications	c/UL/us, wet location
Made/Assembled in USA	Yes
Warranty	10-year Manufacturer warranty
Manufacturer	Nora Lighting
Manufacturer Model Number	NCHR434/20LE1
